ZB24RT30
ZHIBI
Four Quadrant Soft Start Stop Regen Braking 24v Dc Motor Controller 200W 300W Reversible DC Motor Speed Controller
| PWM( pulse width modulation) The PWM makes motor low noise, high efficiency and little maintenance. Service life of DC motor can be fatherly increased. |
| Four-quadrant regeneration in operating mode. |
| Regenerative braking function |
| External directional (or reversing) contactor is not required and components or parts of motor can be protected from superheated or burnout. |

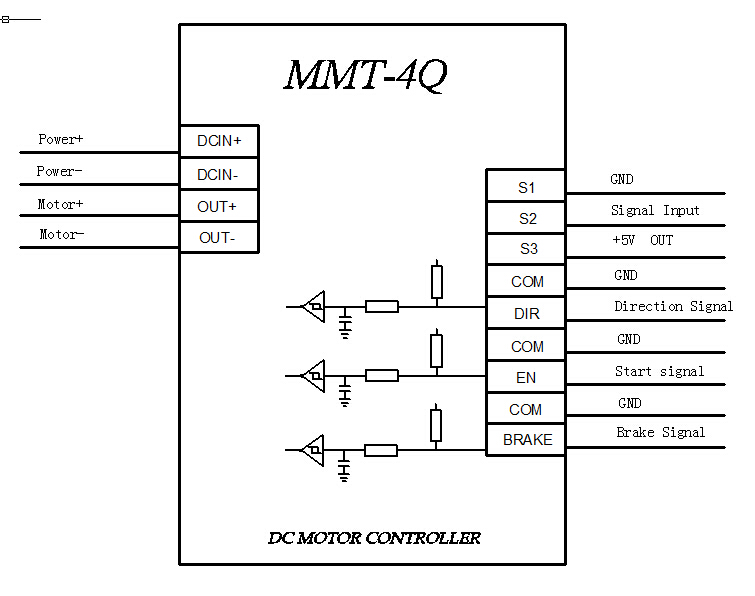

| Enable/Brake/Reversing terminal One of above functions can be achieved with help of passive switching value or open (or broken) circuit of transistor collector. |
| Status Light Power light and various fault warning lights make the status of motor controller visible. |
| Speed value of Forward or Reverse can be set respectively. |
| Value of output current can be set. |
| Value of brake current can be set. |
| Torque compensation |
| Double closed loop PI regulation(Voltage and current) |
| Analog quantity (0-5V) or potentiometers are suitable for controlling. |
| Overvoltage or under voltage protection Overheating protection |
