Four Quadrant 24v 48v Pwm Brushed Dc Motor Speed Controller

This motor controller is low voltage, four-quadrant regeneration and pulse-width
modulation speed controlling system. The MCU (Microcontroller Unit) intelligent control
makes quick response speed, smooth running, reliable operation and complete
proportions, etc.
Quantity:
  • ZB24RT15

Four Quadrant 24v 48v Pwm Brushed Dc Motor Speed Controller 200w Reversible Dc Motor Controller Soft Start Stop Regen Braking


PWM( pulse width modulation)
The PWM makes motor low noise, high efficiency and little maintenance. Service life of
DC motor can be fatherly increased.
Four-quadrant regeneration in operating mode.
Regenerative braking function
External directional (or reversing) contactor is not required and components or parts of
motor can be protected from superheated or burnout.
Enable/Brake/Reversing terminal
One of above functions can be achieved with help of passive switching value or open (or
broken) circuit of transistor collector.
Status Light
Power light and various fault warning lights make the status of motor controller visible.
Speed value of Forward or Reverse can be set respectively.
Value of output current can be set.
Value of brake current can be set.
Torque compensation
Double closed loop PI regulation(Voltage and current)
Analog quantity (0-5V) or potentiometers are suitable for controlling.
Overvoltage or under voltage protection Overheating protection
Four Quadrant 24v 48v Pwm Brushed Dc Motor Speed Controller 200w Reversible Dc Motor Controller Soft Start Stop Regen Braking

DC24RT15BL

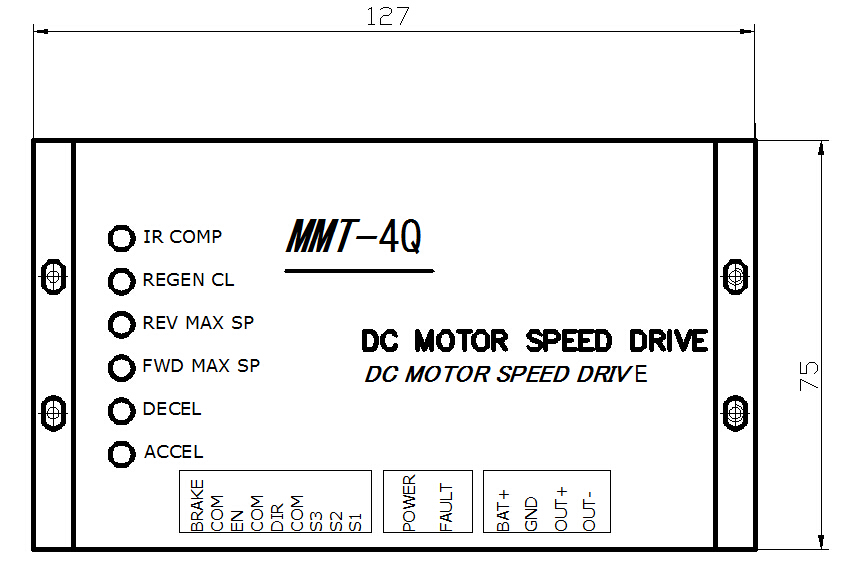

RT15 DIMENSION

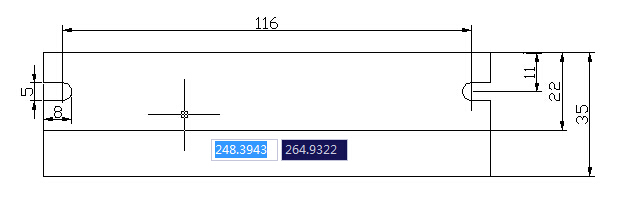

RT15 DIMENSIONSANRE
