24v 100w 48v 200w Brushless Motor Speed Controller Hall Sensor 12V 24V 36V 48V Bldc Motor Driver Speed Mode
1. Applicable to BLDC motor, brushless dc motor, hub motor
2. This controller has three manners of working: speed control, current control and open-loop control.
3. Control functions of braking, direction, enable, first-magnification, dual speed setting, etc. can be realized.
4. Maximum current limit can be adjusted.
5. 0-5V signal control way for external potentiometer, interior potentiometer and external analog quantity and soft start function.
6. Time setting function for soft start.
7. Over current protection function
8. Overheating protection function
When the temperature is too high, the speed controller will stop outputting and provide better safety for the moter and the speed controller.
9. High-speed control that full speed of one pole pair motor can reach 120000RPM
Details refer to relevant contents.
| Input voltage range | DC10-50V |
| Max output current | 15A |
| Output voltage | DC10-50V |
| Operating mode | Speed mode, Torque mode |
| Control ways | 0-5V, PWM, Potentiometer |
| Protection | Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function. |
| Temperature protection | When the temperature is 70℃, the controller will reduce output by overheating protection and stop output. |
| Invironment Temperature | -10℃ -- +60℃ |
| Ambient humidity | Relative humidity less than 80RH |
| Size | L*W*H = 122*72*35 mm |
| Weight | 300g |

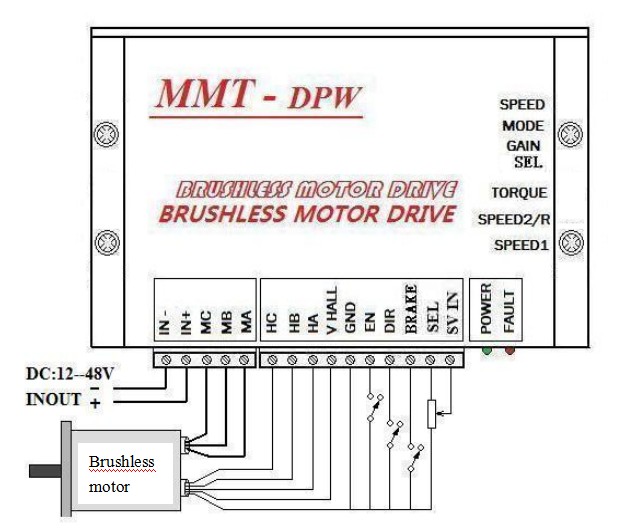

IN- external connection with power negative pole.
IN+ external connection with power positive pole.
MC motor winding C phase.
MB motor winding B phase.
MA motor winding A phase.
HC motor HALL C phase.
HB motor HALL B phase.
HA motor HALL A phase.
V HALL power positive pole, and HALL power voltage range:7—12VDC.
GND 0V of hall
EN Enable.
DIR direction selection.
BRAKE.
SEL assisted selection. ON for dial switch, the foot output is +5V conjunction with terminal 10 foot (GND) and foot(SV IN); while OFF for it, directed at two kinds of speed control ways as input port.
SV IN 0 -- +5V analog quantity input port conjunction with 10 foot (GND) and 14 foot (SEL).
