60bl70-240
ZHIBI

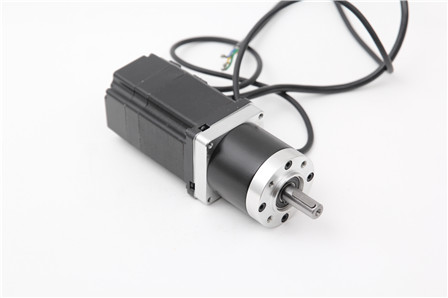

60 brushless dc motor
high torque bldc motor With planetary reducer dc gear motor
General Specifications:
Winding Type………………………………………………… Star
Temperature Rise…………………………………………120℃ electrical angle
Insulation Class…………………………………………B
Ambient Temperature Range…………………………-20℃~+50℃
Insulation Resistance………………………100MΩMin.500VC DC
Dielectric Strength………………………………700V AC 1 minute
Electrical Specifications:
Model | 60BL50-240-57XG | 60BL70-240-57XG | 60BL90-440-57XG | 60BL110-440-57XG | 60BL110-640-57XG |
Number of Poles | 8 | ||||
Number of Phases | 3 | ||||
Nominal voltage VDC | 24 | 24 | 48 | 48 | 310 |
Rated speed RPM | 3000 | ||||
Rated Torque N-m | 0.32 | 0.64 | 0.96 | 1.28 | 1.28 |
RatedCurrent Amps | 5.5 | 11 | 8.3 | 11 | 1.7 |
OutputPower Watts | 100 | 200 | 300 | 400 | 400 |
Peak Tourque N-m | 1.0 | 1.92 | 2.88 | 3.84 | 3.84 |
Peak Current Amps | 16.5 | 33 | 33 | 33 | 5.1 |
Torqueconstant N-m/A | 0.06 | 0.06 | 0.09 | 0.12 | 0.76 |
BackEMF V/kRPM | 4.2 | 4.2 | 6.4 | 8.4 | 55 |
Rotor inertia kg·cm² | 0.24 | 0.48 | 0.72 | 0.96 | 0.96 |
Body Length (L) mm | 78 | 99 | 120 | 141 | 141 |
Mass kg | 0.85 | 1.25 | 1.65 | 2.05 | 2.05 |
Reducer speed ratio | |Grade 1 1:3.6 1:4.25 1:5.33 Grade 2 :1:12.9 1:18 1:22.6 Grade 3:1:76.7 1:96.2 1:151.4 | ||||
L1))Reduction box length mm | Grade 1:49mmGrade 1:63.5mmGrade 1:77mm | ||||
Reduction box mass kg | Grade 1:0.5kg,LGrade 20.8kg gRADE 3:1.1kg |
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.
Note: We can also manufacture products according to customer's requirements.
60 brushless dc motor
high torque bldc motor With planetary reducer dc gear motor
General Specifications:
Winding Type………………………………………………… Star
Temperature Rise…………………………………………120℃ electrical angle
Insulation Class…………………………………………B
Ambient Temperature Range…………………………-20℃~+50℃
Insulation Resistance………………………100MΩMin.500VC DC
Dielectric Strength………………………………700V AC 1 minute
Electrical Specifications:
Model | 60BL50-240-57XG | 60BL70-240-57XG | 60BL90-440-57XG | 60BL110-440-57XG | 60BL110-640-57XG |
Number of Poles | 8 | ||||
Number of Phases | 3 | ||||
Nominal voltage VDC | 24 | 24 | 48 | 48 | 310 |
Rated speed RPM | 3000 | ||||
Rated Torque N-m | 0.32 | 0.64 | 0.96 | 1.28 | 1.28 |
RatedCurrent Amps | 5.5 | 11 | 8.3 | 11 | 1.7 |
OutputPower Watts | 100 | 200 | 300 | 400 | 400 |
Peak Tourque N-m | 1.0 | 1.92 | 2.88 | 3.84 | 3.84 |
Peak Current Amps | 16.5 | 33 | 33 | 33 | 5.1 |
Torqueconstant N-m/A | 0.06 | 0.06 | 0.09 | 0.12 | 0.76 |
BackEMF V/kRPM | 4.2 | 4.2 | 6.4 | 8.4 | 55 |
Rotor inertia kg·cm² | 0.24 | 0.48 | 0.72 | 0.96 | 0.96 |
Body Length (L) mm | 78 | 99 | 120 | 141 | 141 |
Mass kg | 0.85 | 1.25 | 1.65 | 2.05 | 2.05 |
Reducer speed ratio | |Grade 1 1:3.6 1:4.25 1:5.33 Grade 2 :1:12.9 1:18 1:22.6 Grade 3:1:76.7 1:96.2 1:151.4 | ||||
L1))Reduction box length mm | Grade 1:49mmGrade 1:63.5mmGrade 1:77mm | ||||
Reduction box mass kg | Grade 1:0.5kg,LGrade 20.8kg gRADE 3:1.1kg |
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.
Note: We can also manufacture products according to customer's requirements.
