| Quantity: | |
|---|---|
ZB4Q02
ZHIBI

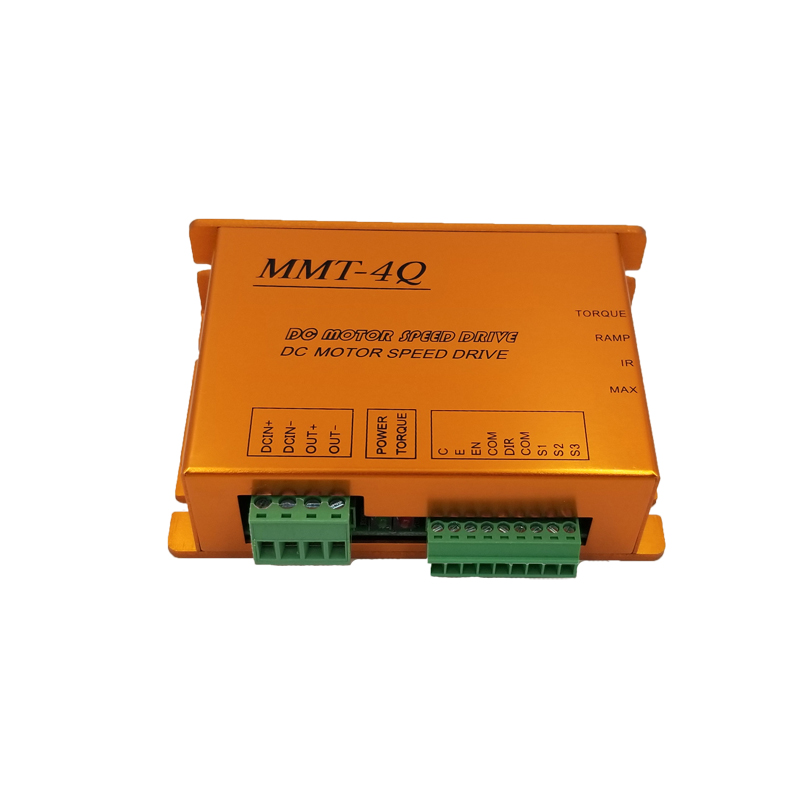

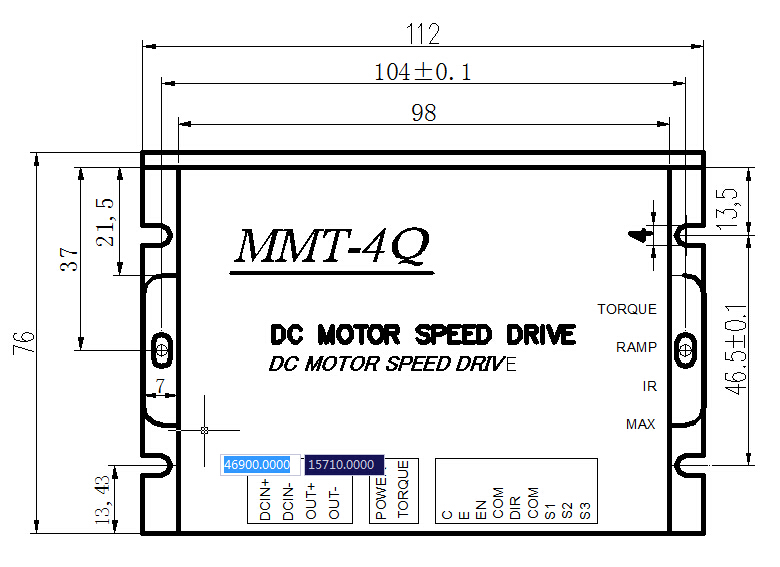

Small Size 24v Brushed Dc Motor Controller 100w 200w PWM Dc Motor Controller
| PWM pulse width modulation | |
| Speed ratio: | 1:100 |
| Control potentiometer: | 2W10K |
| Input voltage: | 20-55V VDC |
| Output current: | 0-20A (amplitude limiting) |
| Input impedance: | ≥50KΩ |
| Revolving speed (standard precision %) | 1 % |
| Starting/braking time | 1-20 S |
| Environment temperature | -10℃~+50℃ |
| Environment humidity | ≤80RH(no moisture condensation)(relative humidity) |
48v 25a dc motor controller dc motor speed controller 24v
Problems | Causes | Recommended solutions |
Motor is out-of-operation | 1. Wiring is incorrect. 2. Command signal is０V. 3. Disconnection of INHIBIT enable terminal. 4. Current output is limited. | 1. Carefully check the wiring between controller and motor 2. Regulate external potentiometer or external analog signal 3. Contact enable terminal 4. Regulate the output current of controller after confirming that motor is not blocked |
Acceleration and deceleration time of motor is improper | Regulate of starting and breaking potentiometer is inappropriate | Regulate starting and breaking potentiometer |
Motor vibrates after acting load | 1. IR COMP setting is too big 2. Lack of current limit | 1. Carefully regulate the setting of IR COMP 2. Regulate the TORQUE potentiometer after confirming that motor matches well with the driver |
Speed up after acting load of motor | IR COMP setting is too small | Increase IR COMP setting |
Slow down after acting load of motor | IR COMP setting is too big | Decrease IR COMP setting |
