ZBS2420
ZHIBI

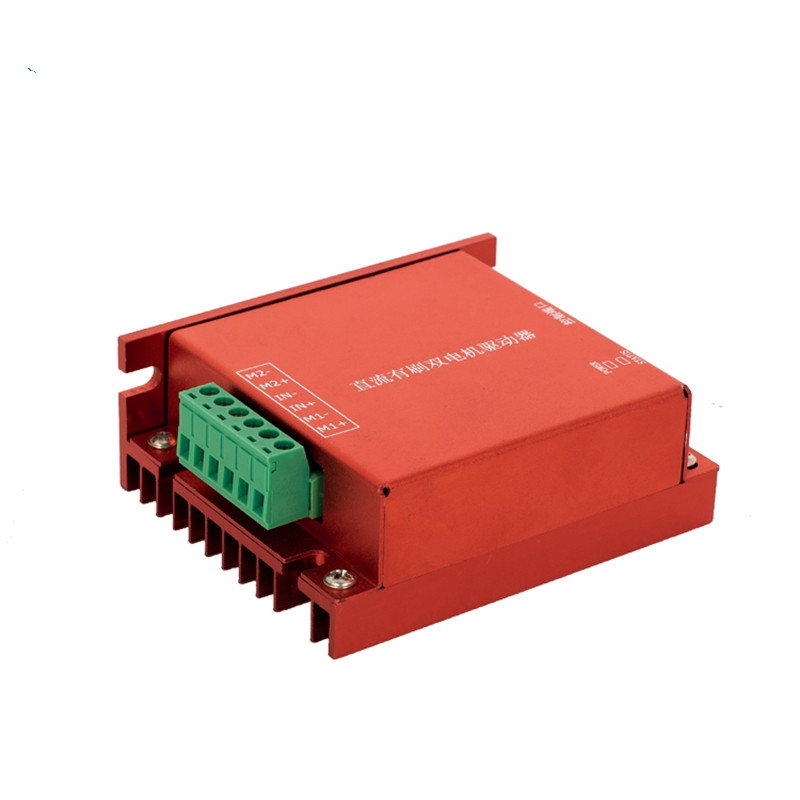

Dual Channal Intelligent Brushed DC Motor Controller
IT S is a kind of intelligent dc bi-motor controller.The controller using a high-performance MCU, using the advanced motion control algorithms, coordinate external quadrature encoder input to complete the motor sport of open loop and closed loop speed, closed loop position mode.It can be widely used in robot driving, small vehicles driving such as automation.
Specification and Model：
Model Max Output Current DC：(A) Max Output Current
DC : (V) Range
DC：(V)
ZBS2420-2E 20 24 12~50
Product Features
Two independent output end.
Wide input voltage range
Intelligent PID control loop
Various work mode:dual-motor independent control, dual-motor hybrid control (for tanks rotary), open loop control, closed loop speed control, closed loop torque control.
External potentiometer,External 0-5V DC Analog
Full forward & reverse control on each channel. Four quadrant operation. Supports regeneration
Emergency braking control function
Max current limit
Protections started under abnormal conditions: Over-current, over-heat, over-voltage, under-voltage, short circuit, etc
LED fault alarm status indicator, fault alarm output.
IV. Performance index:
1.Supply voltage: 12—48VDC
2.Dual channel max current:20A dual channel rated current:12A
3.Power supply (can be supplied to encoder): +5V DC 20mA
4.Input range of Analog quantity: 0-- 5VDC
5.Impulse input range: 500Hz—5000Hz (corresponding maximum speed)
6.PWM The pulse width of input range:250Hz-1KHZ Typical value:250HZ
duty cycle:0%-100%,voltage amplitude values:5V
7.RC signal (a PWM signal: RC remote control receiver output signal)
8.Digital output interface: 2 road, open drain, maximum load capacity of 40 V 1 A.
9.Temperature protection status: When the temperature is 70℃, the controller will reduce output by overheating protection and will stop output when the temperature is 80℃.
10.Working temperature: -25℃-- +60℃.
11.Ambient humidity: Relative humidity≤80RH.
12.Boundary dimension: L * W * H = 90mm * 75mm * 35mm
