170BS0105-10
ZHIBI
12v 7n.m Precision agriculture Automatic Steering Motor for Agricultural Machinery Auto Driving System
l Working mode: Speed mode, position mode
l Feedback: Incremental magnetoresistance encoder (standard product), absolute encoder(custom made).
l Control: RS232, CAN
l Fault LED indicator
l Can be controlled by CANbus networking
l Realize motor speed control and data reading through RS232
l Internal temperature monitoring of drive
l Overcurrent and overload protection
l Overvoltage and undervoltage protection
l Temperature protection
l Locked-rotor and over speed protection
l Motor short circuit protection
This eletric motor adopt direct drive motor scheme design, the rated speed is 80rpm,
you can install it to the steering wheel shaft directly.
It built in controller,support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque reach 16N.m,

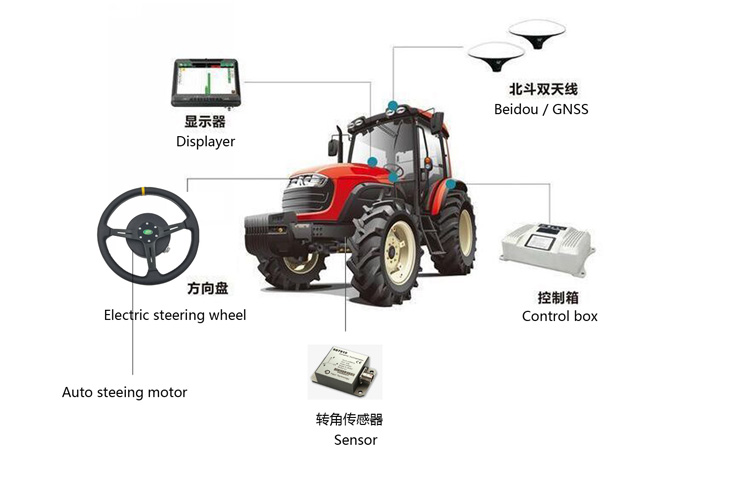

it is widely used in electric power steering system for self-driving robot tractor, it is for precision agriculture, precision farming, digital farming.
12v 7n.m Precision agriculture Automatic Steering Motor for Agricultural Machinery Auto Driving System
Parameter | Label | Parameter value | unit |
Voltage | U | 7-32 | VDC |
Maxcontinuous current | Ic | 10 | A |
Max peak current | Imax | 15 | A |
PWMswitching frequency | fpwm | 10 | kHz |
Output encoder power supply | +5Vout | 5 | VDC |
Icc | 100 | mA | |
Undervoltage | Vu | 7(adjustable) | V |
Overvoltage | Vo | 32(adjustable) | V |
Operating temperature | Industrial grade (standard product) | -25 ~ +55 | ℃ |
Military grade | -40 ~ +65 | ||
Storage temperature | Industrial grade (standard product) | -35 ~ +65 | ℃ |
Military grade | -55 ~ +85 |
