Product Description

110V 220V 200w 400w 700w 1000w 1500w Large Starting Torque Permanent Magnet Brushed Dc Motor High Torque Dc Motor Dc Geared Motor

1. Summery

ZYT Series PM DC Motor is used with Ferrite PM magnet, clouse and self-cooling. It is used for driven element in any equipment system.

2. Model Explanation

90 ZYZ 08 /H1

1.90 indicates motor frame No,. The frame No,is indicated with 55,70,90,110,130(The frame No, corresponds with frame Dia. 55,70,90,110,130mm).

2.ZYZ indcates PM DC Motor.

3.08 indicates the lamination length No,.01-49 refers to short lamination types, 51-99 refers to long lamination types and 101-149 refers to special long lamination types.

4.H1 refers to derivative structure , its No, is indicated with H1,H2,H3…(Each frame No, is arranged on custemor ‘s requirement in order.)

MODEL	TORQUE (MN.M)	SPEED (R/MIN)	POWER (W)	VOLTAGE (V)	CURRENT ≤	SPEED TOLERANCE (R/MIN)
55ZYT51	92.3	3000	29	24	1.7	200
55ZYT52	92.3	3000	29	27	1.8	200
55ZYT53	92.3	3000	29	48	1.1	200
55ZYT54	92.3	3000	29	110	0.46	200
55ZYT55	79.6	6000	50	24	3.45	300
55ZYT56	79.6	6000	50	27	3.1	300
55ZYT57	79.6	6000	50	48	1.74	300
55ZYT58	79.6	6000	50	110	0.74	300
55ZYT59	92.3	1500	15	12	1.7	200
55ZYT60	79.6	3000	29	12	3.45	300

70ZYT51	223	3000	70	24	4.3	200
70ZYT52	223	3000	70	27	3.8	200
70ZYT53	223	3000	70	48	2.2	200
70ZYT54	223	3000	70	220	0.95	200
70ZYT55	191.1	6000	120	24	7.5	300
70ZYT56	191.1	6000	120	27	6.6	300
70ZYT57	191.1	6000	120	48	3.8	300
70ZYT58	191.1	6000	120	220	0.8	300
70ZYT59	223	1500	35	12	4.3	100

90ZYT51	510	1500	80	110	1.1	100
90ZYT52	510	1500	80	220	0.55	100
90ZYT53	480	3000	150	110	2.0	200
90ZYT54	480	3000	150	220	1.0	200
90ZYT55	510	1500	80	24	5.0	100
90ZYT56	510	1500	80	12	10	100
90ZYT101	796	1500	125	110	1.6	100
90ZYT102	796	1500	125	220	0.8	100
90ZYT103	733	3000	230	110	2.8	200
90ZYT104	733	3000	230	220	1.5	200
90ZYT105	733	3000	230	24	13.5	200
90ZYT106	733	1500	125	24	6.5	100
90ZYT107	733	1300	100	36	4	100
90ZYT108	733	3000	250	48	6.5	200

110ZYT51	1177	1500	185	110	2.5	100
110ZYT52	1177	1500	185	220	1.25	100
110ZYT53	980	3000	308	110	4.0	200
110ZYT54	980	3000	308	200	2.0	200
110ZYT55	980	3000	308	24	16.5	200
110ZYT101	1560	1500	245	110	3.0	100
110ZYT102	1560	1500	245	220	1.5	100
110ZYT103	1274	3000	400	110	4.8	200
110ZYT104	1274	3000	400	200	2.4	200
110ZYT105	1274	3000	400	24	22.5	200
110ZYT106	1274	1500	245	24	12	100
110ZYT107	1274	1500	245	12	27	100
110ZYT151	2390	1500	375	110	4.5	100
110ZYT152	2390	1500	375	220	2.3	100
110ZYT153	2230	3000	700	110	8.5	200
110ZYT154	2230	3000	700	220	4.2	200
110ZYT155	2230	3000	700	24	45	200
110ZYT156	2230	1500	375	24	22	100
110ZYT157	2230	1500	375	12	41.6	100

130ZYT51	3185	1500	500	110	5.8	100
130ZYT52	3185	1500	500	220	2.8	100
130ZYT53	3185	3000	1000	110	11	200
130ZYT54	3185	3000	1000	200	5.5	200
130ZYT55	3185	3000	1000	24	50	200
130ZYT56	3185	1500	500	24	25	100
130ZYT101	3822	1500	600	110	7	100
130ZYT102	3822	1500	600	220	3.5	100
130ZYT103	3822	3000	1200	110	13	200
130ZYT104	3822	3000	1200	220	6.5	200
130ZYT105	3822	3000	1200	24	55	200
130ZYT106	3822	1500	600	24	30	100
130ZYT156	4775	1500	750	24	35	200
130ZYT157	4775	3000	1500	24	70	200
130ZYT158	6366	1500	1000	24	50	100

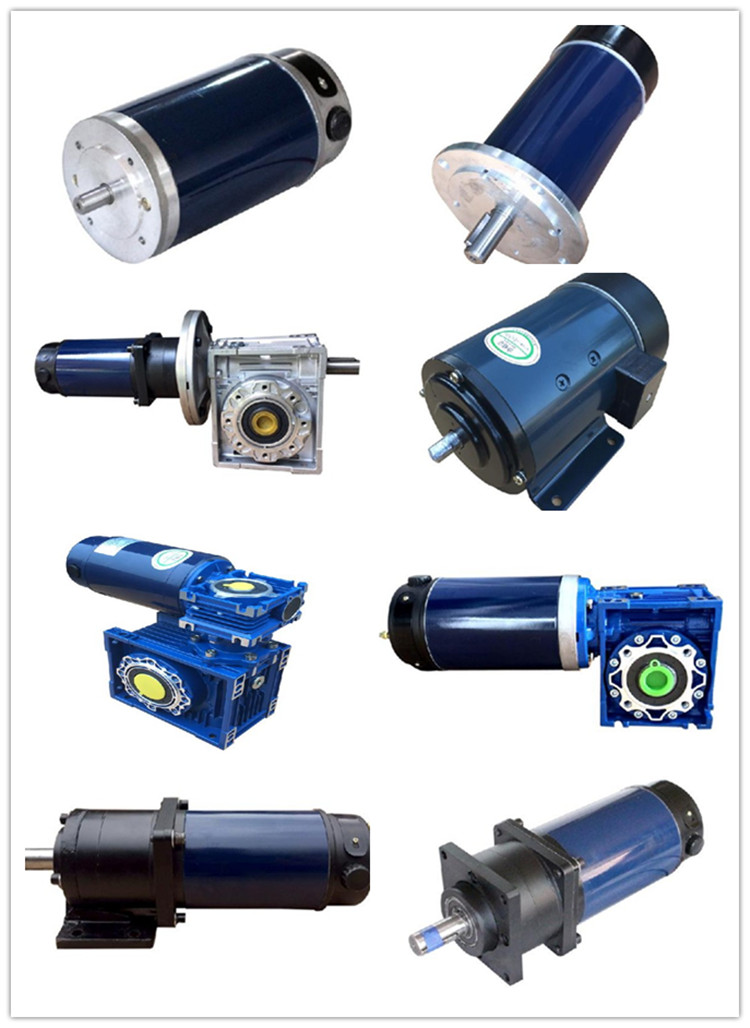

12_副本
